This guide describes the functions and operation of the Brickstuff 6-Channel Lighting Controller with Welding Effects.
The welding effects lighting controller has six outputs. You can connect up to six LED lights (sold separately, included with some kits) to the outputs on the welding effects lighting controller.

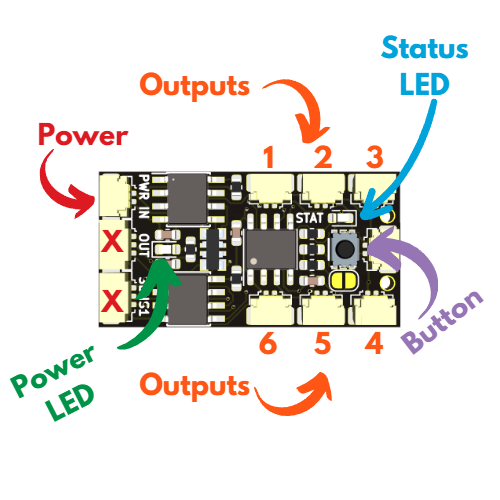

The illustration below shows the main parts of the welding effects lighting controller.
Connect your power input to this plug. This is a "small" plug
(Pico-size), so you'll need a connecting cable with a small plug. If
you are using a Brickstuff power supply with a "large" plug, we sell
conversion cables and adapter boards on our website.
OUTPUTS
Connect up to six LED lights to these outputs. Output 1 is the light for the welding torch. This should be a
COOL WHITE LED.
Output 2 is the light for the glowing metal being welded. This should be either a WARM WHITE LED or any other colored LED. Outputs 3-6 are optional connections for lights for sparks. The lights for the sparks should be either a WARM WHITE LED or any other colored LED. Each of the six outputs uses a "small" plug (Pico-size), so you'll need to connect a LED that has a matching small plug. If you are using a Brickstuff LED light with a "large" plug, we sell conversion cables and adapters on our website.

Here are some things to note about connecting LED lights to the outputs:
- Each output provides enough power to light a single LED light. You can connect more than one LED light to an output (using connecting cables or adapters)-- there is no danger of burning out or damaging the lighting controller by connecting too many LED lights to any single output. Note, however, that the power will be divided by the number of LED lights you have connected to a single output (for example, connecting two LEDs will divide the power between them and make each LED light half as bright as it would be if connected by itself).
- If you connect a high-power LED light or a LED filament light to an output, those LED lights will be very dim: these kinds of LED lights are designed to use many times the total power output provided by a single output on this lighting controller. Again, there is no danger of damaging the controller, but your lights will be very dim or may not light at all if using high-power LED lights or LED filaments.
- If you want to connect your own LEDs to the outputs in a DIY configuration, we sell individual cables with Pico-size connecting plugs on our website in the DIY section. You can purchase six of these and connect any LEDs you want to the welding effects lighting controller. Since the lighting controller delivers a fixed amount of current to each output, no current-limiting resistors are needed regardless of the voltage LED you are using. This greatly simplifies DIY setups using these lighting controllers.
POWER LED
The power LED light will be green when power is connected to the welding effects lighting controller.
STATUS LED
The blue status LED light flashes 1-4 times when power is turned on to show the current setting for the delay time between welds. More information is below, in the USAGE section.
The button is used to change both the delay time between welds setting and also to select whether the delay times occur in random order. More information is below, in the USAGE section.
OTHER PLUGS
There are other plugs on the lighting controller: one marked OUT and one marked SENS1. These have no function for the welding effects lighting controller, so they are marked with a red "X" in the diagram above. Leave these disconnected (do not plug anything into these plugs).
USAGE
Once the welding effects lighting controller is connected to power, its green Power LED light should turn on. If this LED light does not turn on, check your power supply source. The lighting controller is designed to be operated from a 5V DC power source.

Do not connect the lighting controller to any sort of dimming circuit or dimmer controller-- this can damage the circuit board. To operate properly, the lighting controller needs a full "on" connection (5V DC).

You can use external switches to turn the lighting controller ON and OFF as long as those switches are not dimmers and provide either a fully ON or fully OFF power supply.
When power is supplied, the onboard Status LED light will blink 1-4 times to indicate the delay time interval between welds:
- One blink: there is a random 1-2 seconds between welds
- Two blinks: there is a random 3-6 seconds between welds
- Three blinks: there is a random 5-10 seconds between welds
- Four blinks: there is a random 10-20 seconds between welds
After blinking accordingly, the welding effects lighting will start. It will last for a random duration between 5-20 seconds.
During normal operation, you can use the button to change the delay time interval between welds by pressing and quickly releasing the button once. This is called a "short press" of the button. The onboard Status LED light will blink 1-4 times to show which delay time interval setting is now active. See above for the time delays associated with 1, 2, 3, and 4 blinks of the onboard Status LED light.

If you press the button when the delay is set to 4, it will loop back to level 1 again.
